Illuminated Architectural Installation · AUTHË
Commission
Petal Vault 03
Commission from
Rs. 12,00,000
Base work · site engineering, delivery and installation quoted separately

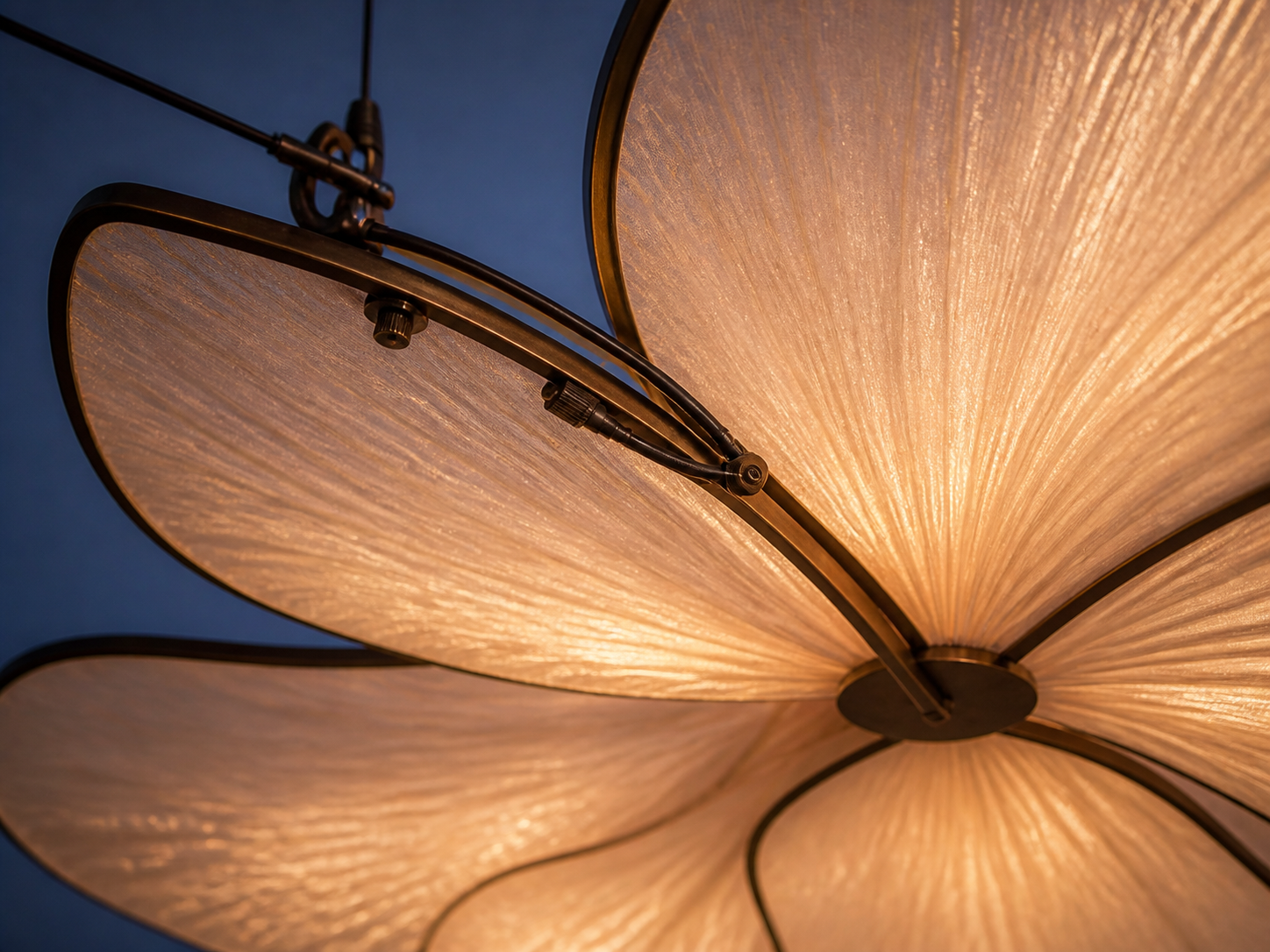

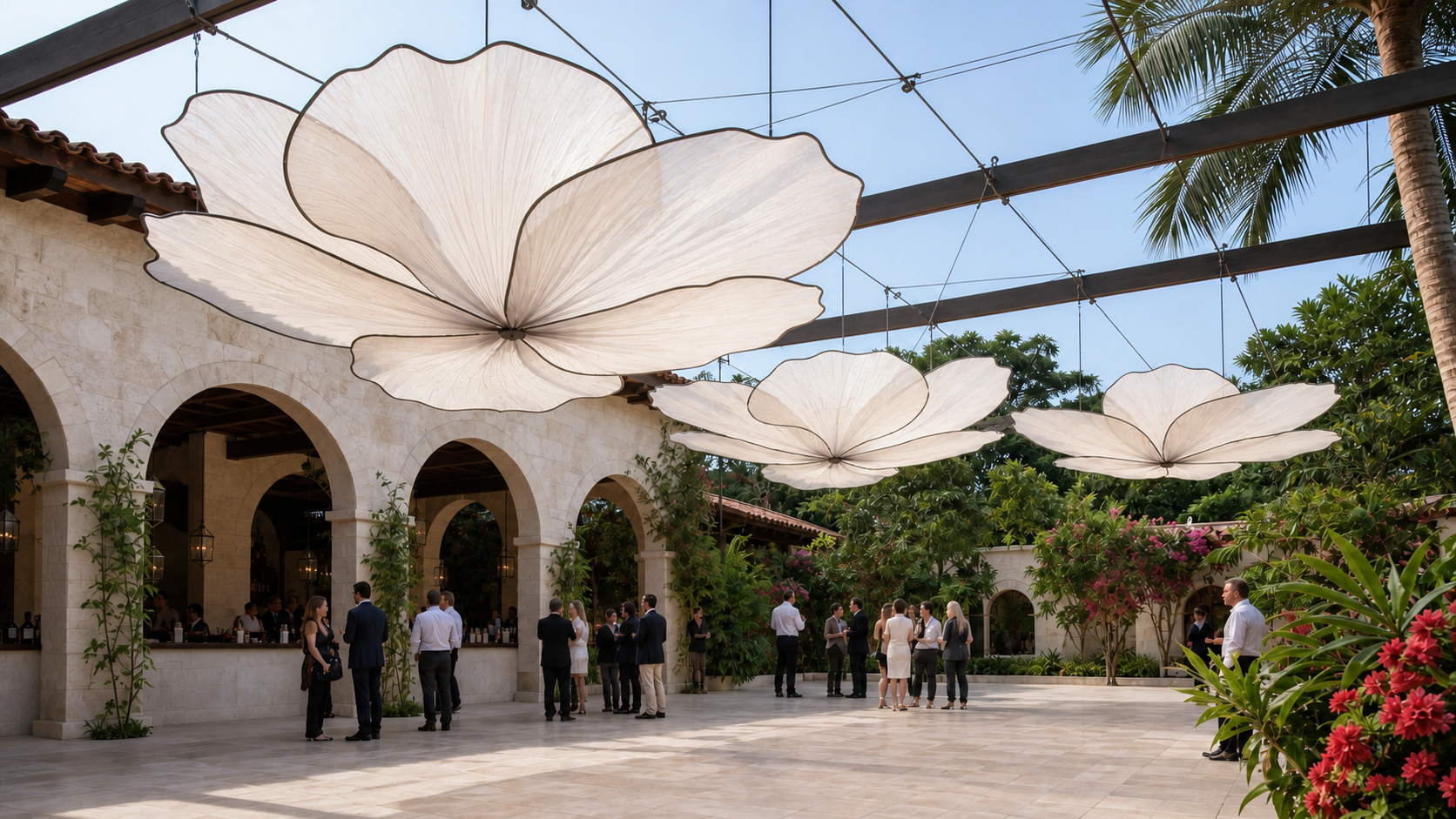

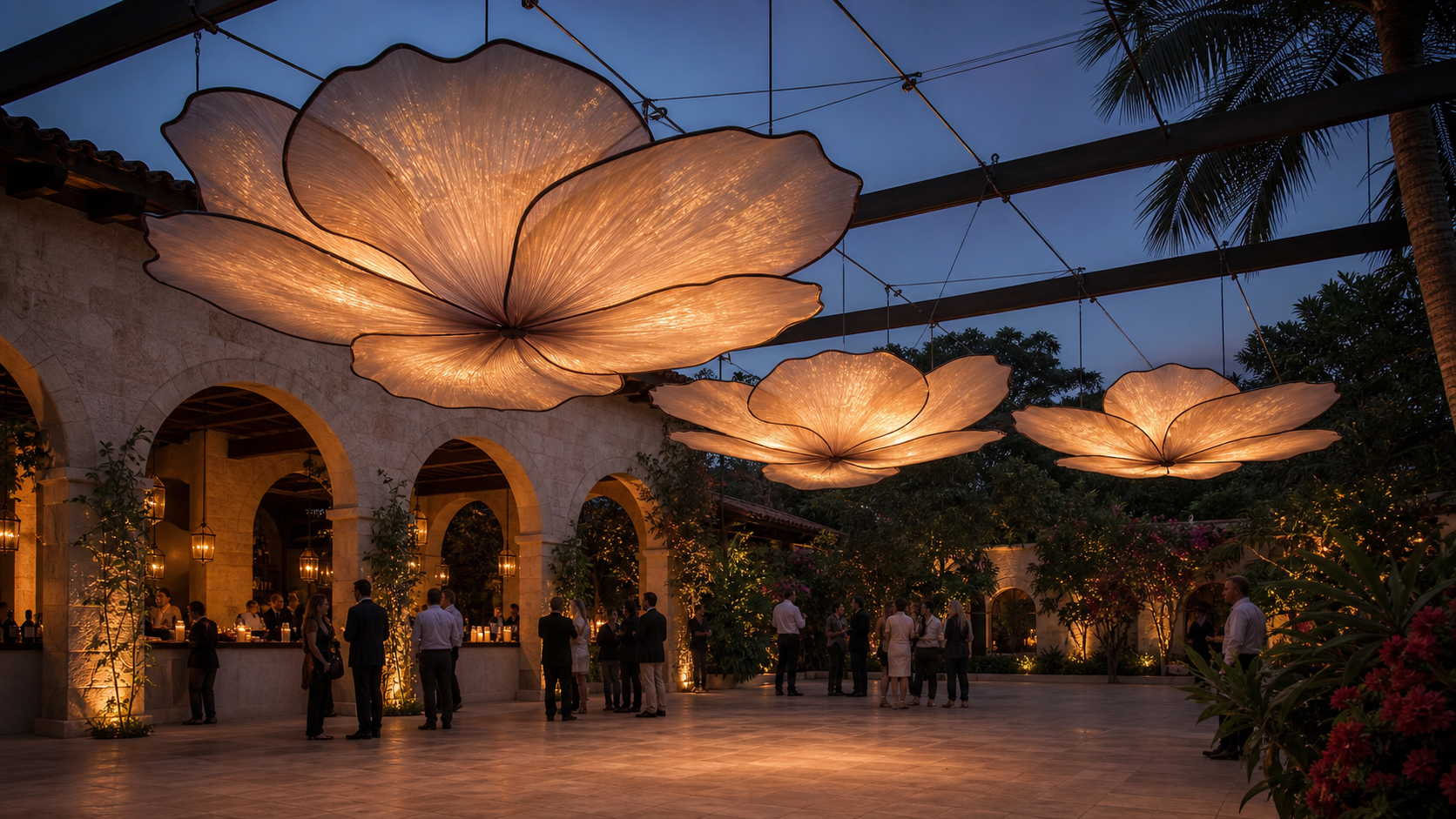

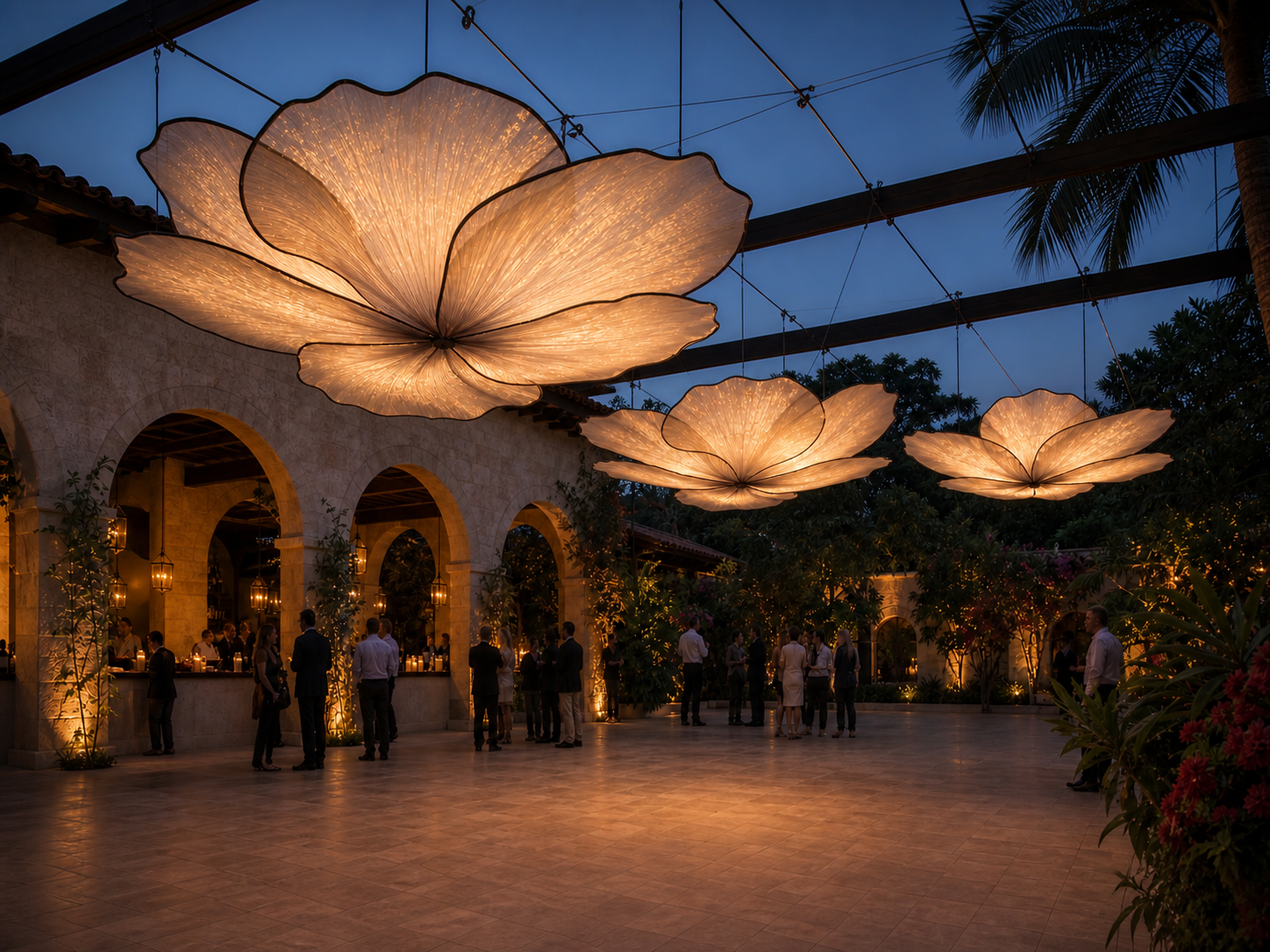

Petal Vault 03 is an illuminated overhead composition of three blossom modules. Each module has five translucent petals around a serviceable low-voltage light core. The three scales overlap to create a sheltered luminous field for a courtyard, arrival space or hospitality room.
The imagery is a concept visualisation. Final suspension points, secondary structure, fire classification, electrical components, driver access, cleaning, wind exposure and local approvals must be engineered for the project before production.
Commission configurator
Configure a commission
Step 1 / 4
Delivery
Custom crating, insured freight and installation quoted to destination
Lead time
Indicative 20–30 weeks after engineering inputs and approvals are complete.
Documentation
Signed record, approved drawings, operating guide and maintenance plan
Studio price
Commission development, sculpture modules, selected studio finish, control enclosure, studio testing and signed handover dossier.
Project price
Site-specific structural engineering, custom crates, insured freight, taxes and duties, rigging, installation and final calibration.
Technical dossier
Dimensions
Three proposed modules: Ø4200, Ø3000 and Ø2400 mm; site suspension height to suit
Use and operation
Three independently serviceable five-petal modules; driver and cleaning access planned into the approved layout.
Materials
Proposed translucent fire-rated textile or composite petals, lightweight aluminium frames, stainless suspension and dimmable low-voltage LED modules.
Motion
Static suspended installation; controlled movement under air flow requires engineering.
Power
Proposed low-voltage dimmable lighting with remote drivers; components and controls selected for the site.
Edition
Site-specific three-module commission.
Installation
Structural survey, coordinated suspension drawing, fire and electrical approval, lifting plan and commissioning are mandatory.
Series
Illuminated Architectural Installation
Made in
Developed in India · production origin confirmed in proposal
Documentation
Studio-signed project record, approved drawing set, configuration schedule, operating guide and maintenance plan

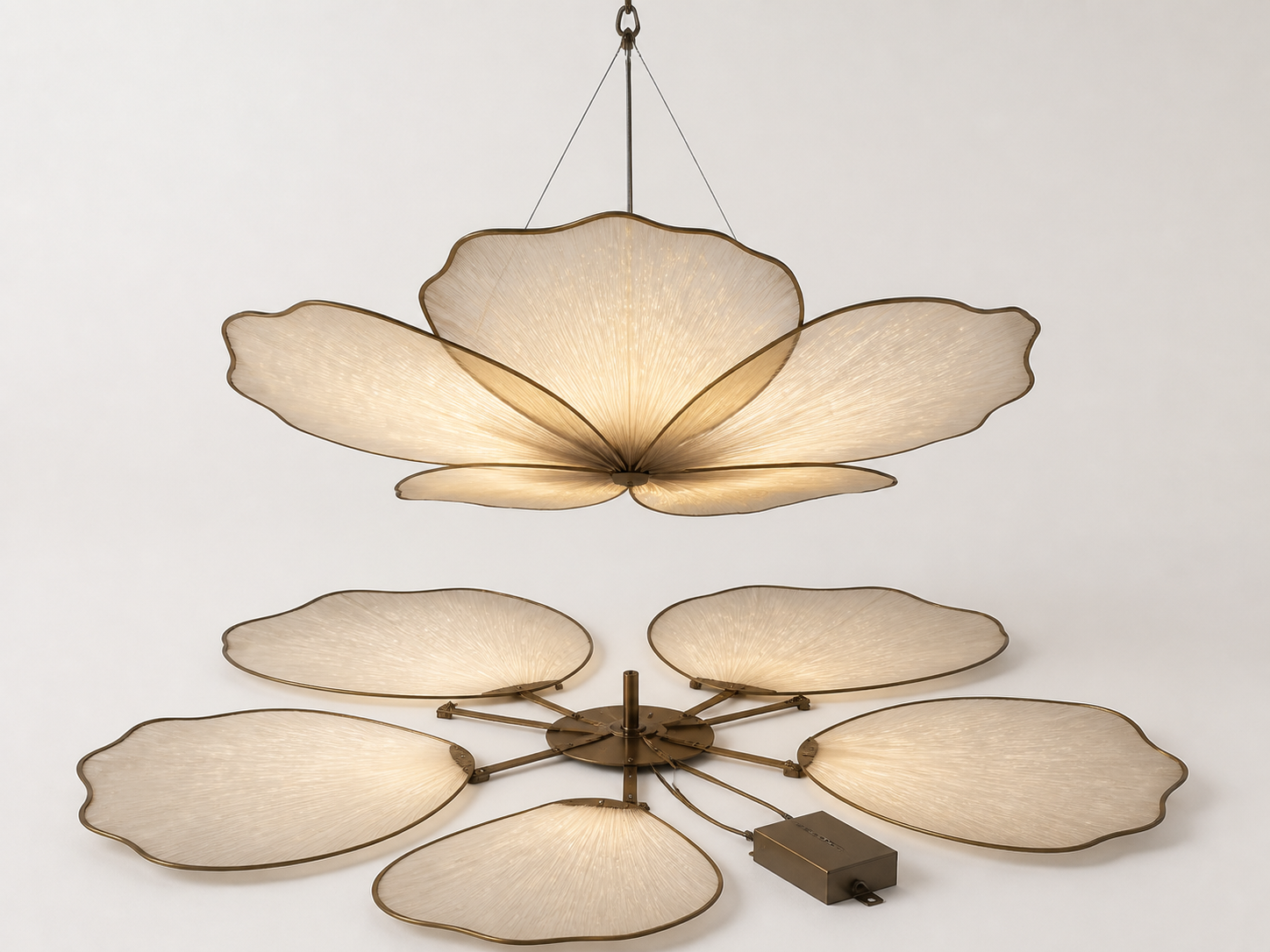

Modular construction
Three separate five-petal frames, removable textile skins and independently serviceable light cores.
Packing and assembly
Petal frames, skins, light cores and rigging travel as numbered modules; freight and lifting quoted to site.
Installation and ownership
Configuration and site review
The selected scale is the starting configuration. Final dimensions, structure, clearances, finish, movement and controls are confirmed against site drawings before fabrication.

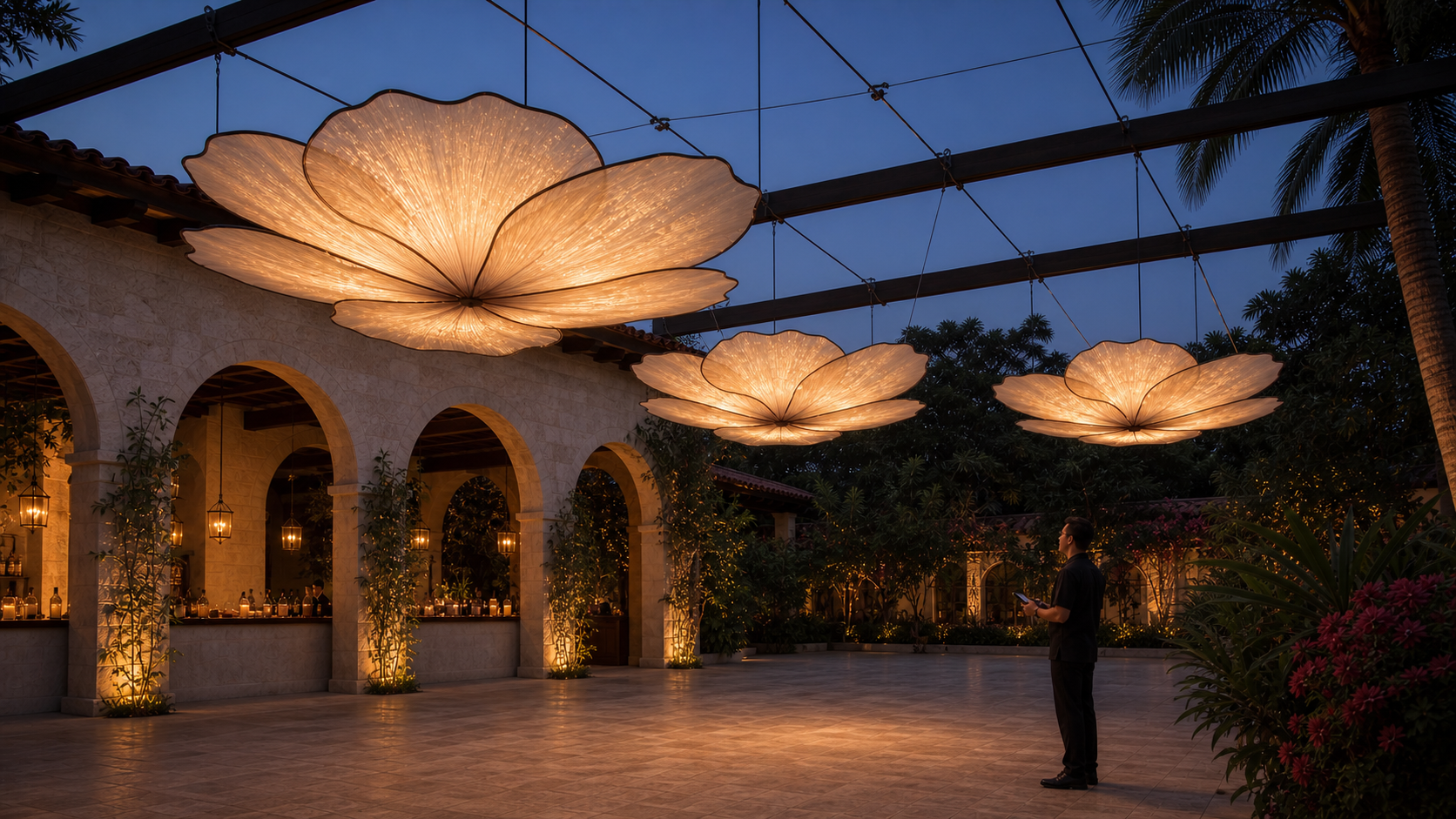

Power and controls
Proposed low-voltage dimmable lighting with remote drivers; components and controls selected for the site. Power location, switching, control integration and cable routes are shown in the approved project drawings.
Installation
Structural survey, coordinated suspension drawing, fire and electrical approval, lifting plan and commissioning are mandatory. Structural capacity and local compliance remain subject to review by the project team.
Shipping and field assembly
Petal frames, skins, light cores and rigging travel as numbered modules; freight and lifting quoted to site. Freight is quoted after crate size, weight, destination, insurance and access are confirmed.
Service and replacement parts
Numbered modules and reversible connections are planned so drives, controls, lighting and optical components can be inspected or replaced individually. The final handover includes an operating guide and maintenance plan.

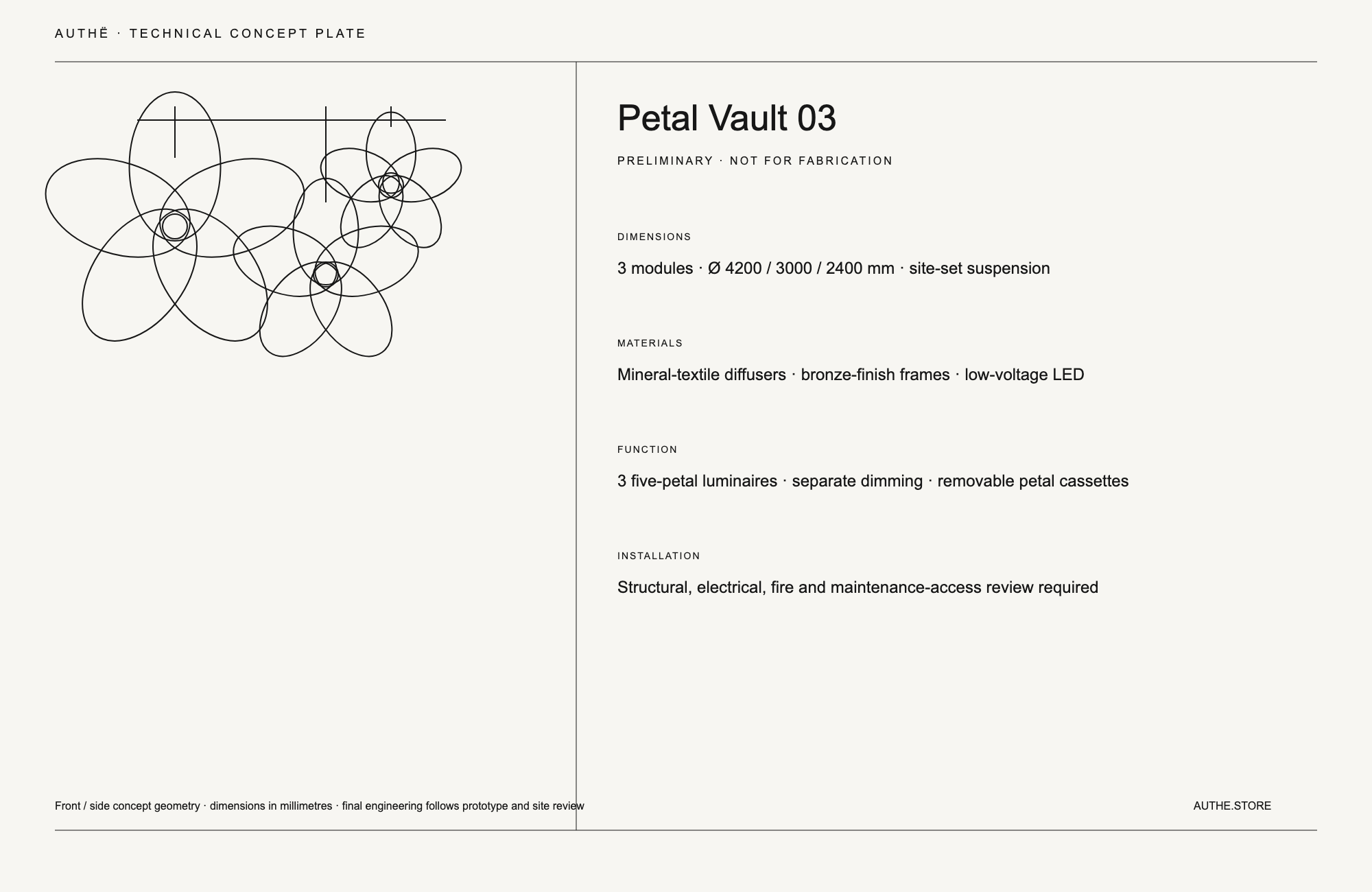

Technical drawing · concept issue 01
Petal Vault 03 · technical outline
Standard commission envelope shown. Final dimensions, loads, fixings, power, service clearances, module breaks and crate sizes are issued after site review.
Specifications
Dimensions
Three proposed modules: Ø4200, Ø3000 and Ø2400 mm; site suspension height to suit
Use and operation
Three independently serviceable five-petal modules; driver and cleaning access planned into the approved layout.
Materials
Proposed translucent fire-rated textile or composite petals, lightweight aluminium frames, stainless suspension and dimmable low-voltage LED modules.
Movement
Static suspended installation; controlled movement under air flow requires engineering.
Power
Proposed low-voltage dimmable lighting with remote drivers; components and controls selected for the site.
Installation
Structural survey, coordinated suspension drawing, fire and electrical approval, lifting plan and commissioning are mandatory.
Edition
Site-specific three-module commission.
Lead time
Indicative 20–30 weeks after engineering inputs and approvals are complete.
Modular construction
Three separate five-petal frames, removable textile skins and independently serviceable light cores.
Packing and delivery
Petal frames, skins, light cores and rigging travel as numbered modules; freight and lifting quoted to site.
Made in
Developed in India · production origin confirmed in proposal
Drawing
